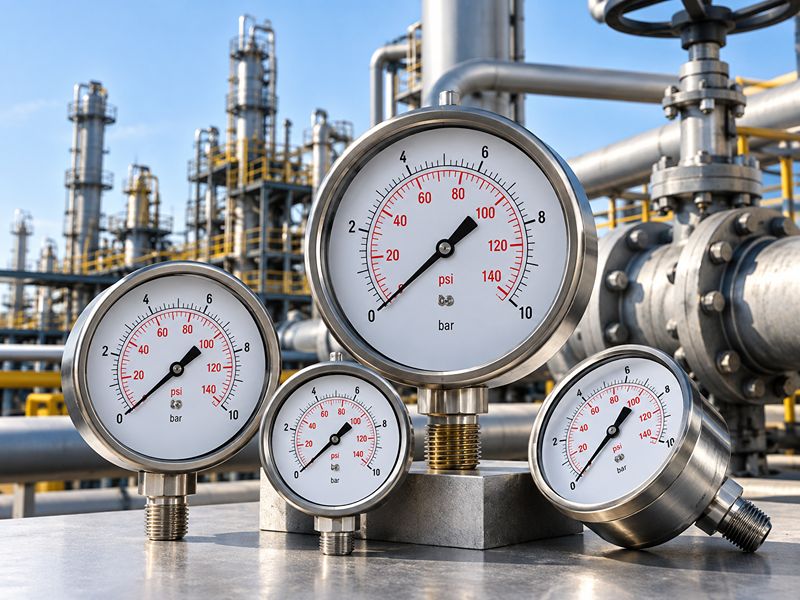

Pressure Gauge – High Precision Industrial Pressure Measurement
A Pressure Gauge is an essential instrument used to measure the pressure of gases and liquids in industrial systems. At Rutvi Enterprises, we supply high-precision pressure gauges designed for demanding applications in CNG stations, oil & gas, petrochemical, and heavy industries.
Our pressure gauges are available in a wide range of dial sizes, pressure ranges, and connection types. Whether you need a glycerin-filled gauge for vibration resistance or a high-pressure gauge for CNG systems, we have the right solution for your requirement.
- High Accuracy & Reliable Performance
- Glycerin / Silicone Filled Options Available
- PESO & ISO Compliant
Key Specifications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Bourdon Tube Pressure Gauge |
| Dial Size | 40 mm, 50 mm, 63 mm, 100 mm, 150 mm |
| Pressure Range | 0–4, 0–7, 0–16, 0–25, 0–40, 0–60, 0–100, 0–160, 0–250, 0–400, 0–600, 0–1000 bar |
| Accuracy Class | ±1.0%, ±1.6%, ±2.5% (as per IS 3624) |
| Connection Size | 1/8", 1/4", 3/8", 1/2" |
| Connection Type | BSP / NPT / BSPT |
| Mounting | Bottom Entry / Back Entry / Panel Mount |
| Case Material | Stainless Steel 304 / Brass / MS |
| Wetted Parts | Brass / SS 316 |
| Window | Acrylic / Polycarbonate / Glass |
| Liquid Filling | Dry / Glycerin Filled / Silicone Filled |
| Operating Temperature | -20°C to +80°C |
| Over Range Protection | 25% of Full Scale |
| Standard | IS 3624 / EN 837-1 |
| Application | CNG, Air, Water, Oil, Gas, Steam |
Key Features
- High Accuracy – Precision Bourdon tube mechanism ensures reliable and accurate pressure reading.
- Glycerin / Silicone Filled – Reduces needle vibration and protects internal parts in high-vibration environments.
- Stainless Steel Case – Corrosion-resistant SS 304 case for long service life in harsh conditions.
- Wide Pressure Range – Available from 0–4 bar up to 0–1000 bar to suit various applications.
- Multiple Mounting Options – Bottom entry, back entry, and panel mount configurations available.
- Safety Glass Window – Acrylic, polycarbonate, or glass window for clear visibility and safety.
- Leak-Proof Connection – Precision threaded connections (BSP/NPT) for secure, leak-free installation.
- IS 3624 Compliant – Manufactured as per Indian standards for quality assurance.
- Custom Ranges Available – Dual scale (bar/psi) and custom pressure ranges on request.
How Does a Pressure Gauge Work?
A pressure gauge works on the Bourdon tube principle, where internal pressure causes a curved tube to straighten, moving a needle across a calibrated dial:
- Pressure Entry: The pressurized medium enters through the connection port into the Bourdon tube.
- Tube Movement: As pressure increases, the curved tube tends to straighten, causing its tip to move.
- Linkage & Gear: This movement is transferred through a linkage and gear mechanism to the pointer.
- Reading Display: The pointer moves across the graduated dial, indicating the pressure value.
In glycerin-filled gauges, the liquid dampens needle movement, reducing vibration and extending gauge life in demanding applications like CNG stations and hydraulic systems.
Where Our Pressure Gauges Are Used
Frequently Asked Questions
What is the price of a pressure gauge in India?
Price depends on dial size, pressure range, accuracy class, and material. Contact Rutvi Enterprises for a customized quote based on your requirement.
What is the difference between dry and glycerin-filled pressure gauges?
Dry gauges are suitable for stable pressure applications. Glycerin-filled gauges are used in high-vibration environments as the liquid dampens needle movement and protects internal parts.
What pressure range is available?
Our pressure gauges are available from 0–4 bar up to 0–1000 bar. Custom ranges and dual scales (bar/psi) are also available on request.
Are your pressure gauges suitable for CNG applications?
Yes. We supply high-pressure gauges specifically designed for CNG stations and CNG dispensing systems, with pressure ranges up to 400 bar and above.
Do you provide bulk orders and after-sales support?
Yes. Rutvi Enterprises supplies pressure gauges in bulk for industrial projects and provides after-sales support, spare parts, and technical assistance across India.
Get a Quote for Your Pressure Gauge
Contact Rutvi Enterprises for customized pressure gauge solutions, pricing, and technical support.
