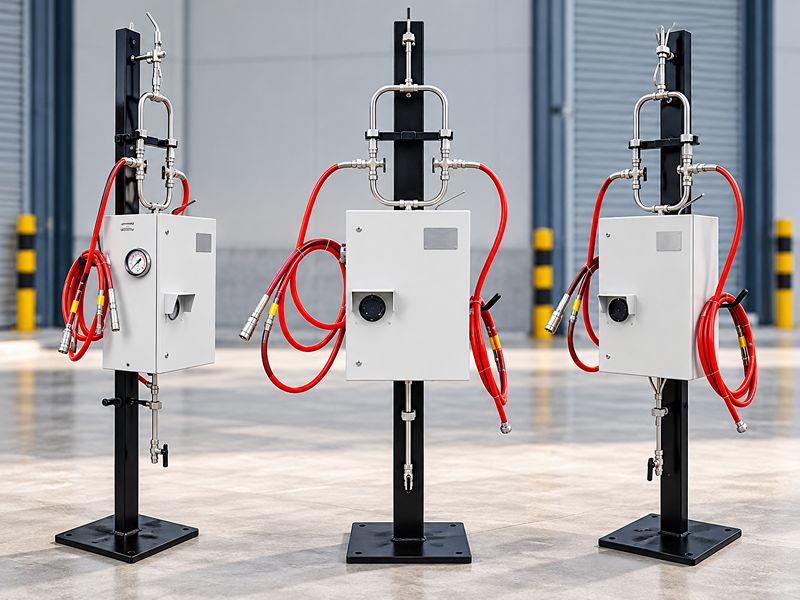

LCV Post – Light Commercial Vehicle CNG Filling Post
An LCV Post is a compact and efficient CNG filling post designed specifically for Light Commercial Vehicles (LCVs) such as small trucks, tempos, and delivery vans. At Rutvi Enterprises, we supply high-quality LCV CNG filling posts that deliver safe, fast, and accurate refueling for small to medium fleet operations.
Our LCV posts are ideal for fleet operators, small CNG stations, and depot refueling facilities. They are designed with advanced safety features and high-precision metering to ensure reliable performance and long service life.
- Compact Design for Small Spaces
- High Precision Mass Flow Metering
- PESO & W&M Compliant
Key Specifications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Configuration | Single Hose / Dual Hose |
| Number of Lines | 1 Line (standard); 2 optional |
| Flow Rate (Max / Nom / Min) | 30 / 15 / 5 kg/min |
| Working Pressure | 200 kg/cm² (g) |
| Inlet Pressure | 250 kg/cm² (g) |
| Metering | Coriolis Mass Flow with W&M Approval |
| Temperature Range | -20°C to +70°C |
| Tube Pressure Rating | 6000 psi |
| Fill Hose Type | Twin (Fill & Vent), 1/2" ID |
| Breakaway Coupling | Yes, 1/2" size |
| Solenoid Valve | Yes (Flameproof) |
| Emergency Shutdown (ESD) | Yes |
| Hose Retractor | Yes |
| Temperature Compensation | Yes (Selectable) |
| Hazardous Area Classification | Class I, Zone 1, Gas Group IIA/IIB |
| Installation | Outdoor / Canopy |
Key Features
- Compact Design – Space-saving LCV post ideal for small stations and depot refueling facilities.
- High Precision Metering – Coriolis mass flow meter with W&M approval ensures accurate billing.
- Optimized Flow Rate – Delivers 5–30 kg/min, perfectly suited for LCV tank sizes.
- Advanced Safety System – Includes pressure relief valve, breakaway coupling, solenoid valve, and ESD.
- Stainless Steel 304 Frame – Corrosion-resistant and durable construction for long service life.
- Twin Hose Design – Separate fill and vent hoses with captured vent for safe gas recovery.
- Explosion-Proof Design – All electrical components housed in flameproof enclosures compliant with Zone 1 standards.
- POS Compatible – RS 485 communication for integration with POS and automation systems.
- Easy Maintenance – Modular design allows quick access to valves and electronics.
How Does an LCV Post Work?
An LCV post operates on the same three-stage cascade filling principle as a standard CNG dispenser, but is optimized for smaller vehicle tanks:
- Stage 1 – Low Pressure: Gas flows from the low-pressure storage bank first, rapidly filling the LCV tank.
- Stage 2 – Medium Pressure: As vehicle pressure rises, the system switches to the medium-pressure bank.
- Stage 3 – High Pressure: Final top-up from the high-pressure bank until the LCV tank reaches 200 kg/cm².
The Coriolis mass flow meter continuously measures the exact mass of gas dispensed, ensuring accurate billing. Temperature compensation adjusts for ambient conditions to prevent overfilling.
Where Our LCV Posts Are Used
Frequently Asked Questions
What is the price of an LCV post in India?
Price depends on configuration (single/dual hose), flow rate, and certifications. Contact Rutvi Enterprises for a customized quote based on your requirements.
What is the difference between an LCV post and a standard CNG dispenser?
An LCV post has a lower flow rate (5–30 kg/min) optimized for smaller vehicle tanks, whereas a standard CNG dispenser delivers 10–75 kg/min for cars and buses. LCV posts are more compact and cost-effective for small fleets.
What flow rate does an LCV post deliver?
Our LCV posts deliver 5–30 kg/min, ideal for light commercial vehicles with smaller CNG tanks.
Are LCV posts suitable for small CNG stations?
Yes. LCV posts are specifically designed for small CNG stations, fleet depots, and corporate refueling facilities with limited space and moderate refueling needs.
Do you provide installation and after-sales support?
Yes. Rutvi Enterprises provides installation support, commissioning assistance, spare parts, and maintenance services across India.
Get a Quote for Your LCV Post
Contact Rutvi Enterprises for customized LCV CNG filling post solutions, pricing, and technical support.
