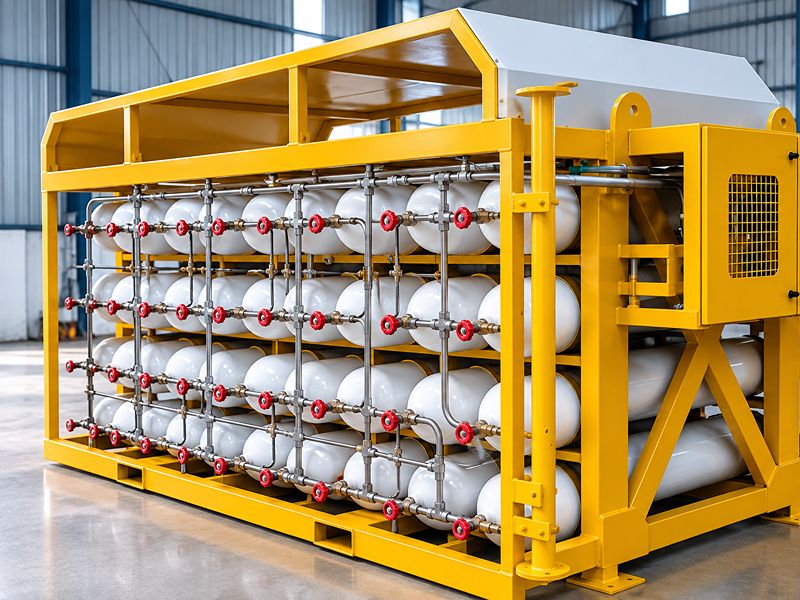

CNG Cascade – High Pressure CNG Storage System
A CNG Cascade is a critical storage system used at CNG fueling stations to store compressed natural gas at high pressure before dispensing it into vehicles. At Rutvi Enterprises, we supply high-quality CNG cascades designed for safety, reliability, and long service life in demanding environments.
Our CNG cascades are available in various capacities, pressure ratings, and configurations to suit different station requirements. Whether you operate a small retail station or a large fleet refueling facility, we provide the right cascade solution for your needs.
- High Pressure Storage up to 250 bar
- PESO Compliant & Safety Tested
- Durable & Corrosion-Resistant Construction
Key Specifications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Working Pressure | 250 bar (g) |
| Test Pressure | 375 bar (g) |
| Capacity Range | 500, 1000, 1500, 2000, 3000, 5000 Sm³ |
| Configuration | 3-Tier Cascade (Low, Medium, High Pressure) |
| Cylinder Type | Seamless Steel / Composite / Type I, II, III, IV |
| Cylinder Size | Varies based on capacity |
| Number of Cylinders | 4, 6, 8, 12, 16, 24 (customizable) |
| Valve Type | High Pressure Needle Valve / Ball Valve |
| Manifold Material | SS 316 / High Pressure Tubing |
| Frame Material | MS with Epoxy Coating / SS 304 |
| Safety Features | PRV, Burst Disc, Isolation Valve, Pressure Gauge |
| Temperature Range | -20°C to +60°C |
| Standard | PESO / ISO 11439 / EN 12245 |
| Installation | Outdoor / Indoor |
Key Features
- High Pressure Storage – Designed to store CNG at 250 bar working pressure for efficient vehicle refueling.
- 3-Tier Cascade System – Low, medium, and high-pressure banks optimize gas utilization and reduce compression costs.
- Multiple Capacity Options – Available from 500 Sm³ to 5000 Sm³ to suit different station sizes.
- Safety Features – Equipped with Pressure Relief Valves (PRV), burst discs, and isolation valves for safe operation.
- Durable Construction – MS frame with epoxy coating or SS 304 frame for corrosion resistance.
- High-Quality Manifold – SS 316 manifold with high-pressure tubing for leak-free performance.
- PESO Compliant – Manufactured as per PESO and ISO 11439 standards for safety and quality.
- Easy Maintenance – Modular design allows easy access to valves, gauges, and cylinders.
- Custom Configurations – Custom capacities, cylinder counts, and frame designs available on request.
How Does a CNG Cascade Work?
A CNG cascade works on a three-stage pressure banking system to maximize gas utilization and minimize compression costs:
- Low Pressure Bank: Gas is stored at lower pressure and is used first to fill vehicle tanks rapidly.
- Medium Pressure Bank: As vehicle pressure rises, the system automatically switches to the medium-pressure bank.
- High Pressure Bank: Final top-up from the high-pressure bank until the vehicle tank reaches the required 200 bar pressure.
- Compressor Refill: Once banks are depleted, the compressor refills them in sequence for the next refueling cycle.
This cascade system ensures maximum gas utilization, reduces compressor running time, and extends the life of station equipment.
Where Our CNG Cascades Are Used
Frequently Asked Questions
What is the price of a CNG cascade in India?
Price depends on capacity, pressure rating, number of cylinders, and frame configuration. Contact Rutvi Enterprises for a customized quote based on your station requirements.
What is the working pressure of a CNG cascade?
Standard CNG cascades operate at 250 bar working pressure with a test pressure of 375 bar. Higher pressure configurations are available on request.
What capacity options are available?
Our CNG cascades are available from 500 Sm³ to 5000 Sm³. Custom capacities can be designed based on your station's daily refueling requirements.
Are your CNG cascades PESO compliant?
Yes. All our CNG cascades are manufactured as per PESO and ISO 11439 standards, with proper safety features like PRV, burst discs, and isolation valves.
Do you provide installation and after-sales support?
Yes. Rutvi Enterprises provides installation support, commissioning assistance, spare parts, and maintenance services across India.
Get a Quote for Your CNG Cascade
Contact Rutvi Enterprises for customized CNG cascade solutions, pricing, and technical support.
